Product Category
Pinion wheel



Pinion wheel

Name Model&specification Drawing number Weight,kg Material Pinion wheel EKG-5 1080.16.03-2 105 35CrMo Pinion wheel EKG-5 1080.33.50 110 40Cr/34CrNiMo Pinion wheel EKG-5 1080.16.03-2 185 34CrNiMo Pinion wheel EKG-5 1080.16.27-1 250 34CrNiM...

Gear



Gear

Name Model&specification Drawing number Weight,kg Material Gear M=26 Z=128 EKG-5 1080.27.01-1 2765 ZG45/ZG35CrMo Gear M=30 Z=144 EKG-8 3519.05.00.080СБ 6420 ZG45/ZG35CrMo/ZG30CrNiMo Gear M=30 Z=144 EKG-8 3502.05.00.007 6800 ZG45/ZG35CrM...

Gear shaft



Gear shaft

Name Model&specification Drawing number Weight,kg Material Gear shaft z16 m14 EKG-5 1080.05.341-1 142 40Cr /35CrMo /34CrNiMo Gear shaft EKG-5 1085.20.402 330 40Cr /35CrMo /34CrNiMo Gear shaft 2-144269 600 34CrNiMo Gear shaft ЭШ20/90 258...

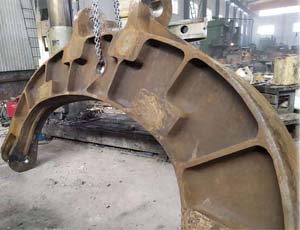

Bucket lifting beam



Bucket lifting beam

Name Model&specification Drawing number Weight,kg Material Bucket lifting beam EKG-5А 1080.02.16 705 ZGMn13 Bucket lifting beam EKG-12 11075.02.08 2900 ZGMn13...

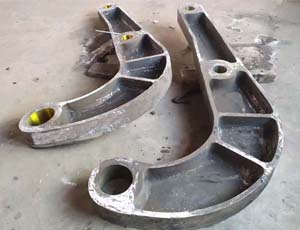

Bucket hook



Bucket hook

Name Model&specification Drawing number Weight,kg Material Bucket hook EKG-5 1001.01.119-1(1080.02.111) 210 ZGMn13 Bucket hook EKG-4 1014.89.12-2 310 ZGMn13 Bucket hook EKG-10 3532.01.02.015 420 ZGMn13 Bucket hook EKG-12 11075.52.601...

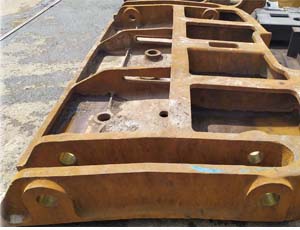

Baseplate of shovel bucket



Baseplate of shovel bucket

Name Model&specification Drawing number Weight,kg Material Baseplate of shovel bucket EKG-4,6 1041.01.101-2 1290 ZGMn13 Baseplate of shovel bucket EKG-5А 1080.52.101 1370 ZGMn13 Baseplate of shovel bucket EKG-8 3519.01.02.001 2090 ZGMn13...
